Features Lists
- Image processing technology
- User Convenience
- Easy Maintenance
- P.C application (Network)
- 50 currencies installation
- Available for 100 currencies
- Multiple currency count (Max. 50 currencies)
- Easy module Upgrade (MAXON 110F)

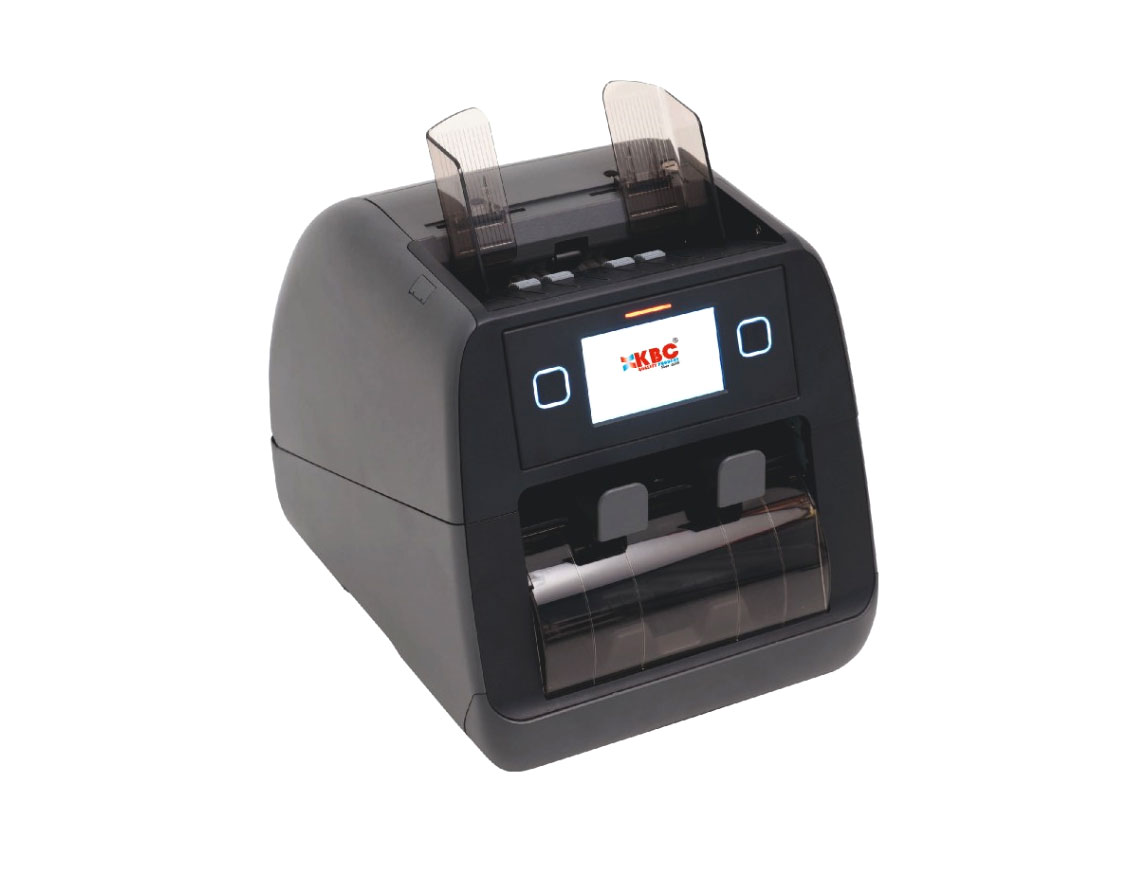

Model KBC-110F Pocket Banknote Sorter
Specifications
| Banknote Recognition Detection |
Dual Contact Image Sensor (CIS) IR Reflection (Front & Rear) IR Transmission Magnetic (MG, Full Line) Ultraviolet (UV) Tape; Fitness (KBC-F) |
|---|---|
| Count Speed |
Value Counting: Max 1200 Note/Min Serial Number Recognition: Max 1200 Note/Min Fitness Counting: Max 1300 Note/Min |
| Pocket Speed | Hopper: 500 notes / Reject: 100 notes / Stacker:250 notes |
| Currency | MAx. 50 Currencies / Auto/Multi Currency with max. 50 currencies |
| Display | 4.3 Inch Full color LCD (480x272) / Touch Screen / 3 step angle adjustment |
| Power Supply | 100 ~ 240V ~ 50/60Hz |
| Interface |
LAN (1Gbps) - P.C Communication, Remote upgrade Micro SD Card Serial Communication / USB Communication Auto Dust Cover |
| Option | Customer Display, Printer |
| Dimension | (W x D x H) 300mm x 360mm x 308mm |
| Weight | 12kg |
| Gross Weight | 13kg |
